Brauer Medium & Light Castors

Range: Castor: Group : GG Series - Max Load (1500kg)
If enabled click on ´Wheel Data´ to view wheel specification.									<< Back

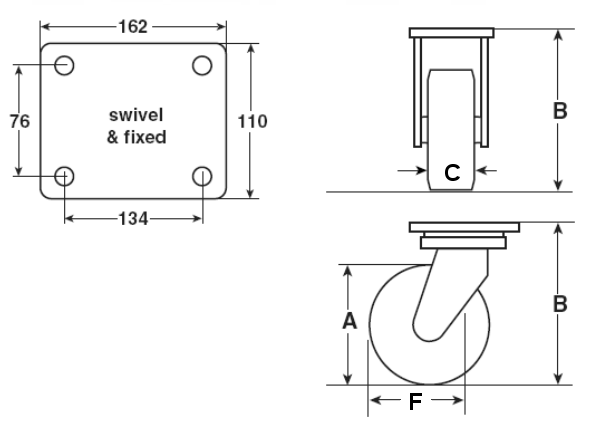

Part No	Mount	Wheel Ø (A)	Overall Height (B)	Tread Width (C)	Swivel Radius (F)	Max Load Rating	Wheel Bearing Type	Castor Weight (kg)	Wheel Data
GGS/H100/40BJ	Swivel	100	165	40	90	450	BJ	8	H100/40
GGF/H100/40BJ	Fixed	100	165	40	n/a	450	BJ	8	H100/40
GGS/H150/50BJ	Swivel	150	216	50	125	900	BJ	9	H150/50
GGF/H150/50BJ	Fixed	150	216	50	n/a	900	BJ	9	H150/50
GGS/H200/40BJ	Swivel	200	267	40	160	900	BJ	11	H200/40
GGF/H200/40BJ	Fixed	200	267	40	n/a	900	BJ	11	H200/40
GGS/H250/45BJ	Swivel	250	318	45	195	1300	BJ	16	H250/45
GGF/H250/45BJ	Fixed	250	318	45	n/a	1300	BJ	16	H250/45
Top plates have fixing holes to suit 12mm diameter bolts Swivel top plate thickness 24mm Fixed top plate thickness 12mm For technical information covering load factors, etc., see Design Data
