QZ SeriesRange: Castor:
Group : QZ Series - Max Load (4200kg)

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

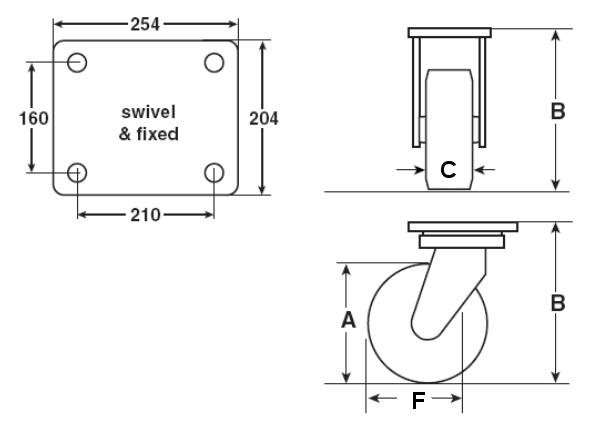

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
QZS/H300/100TBSwivel3003751002503100TB43

H300/100

QZF/H300/100TBFixed300375100n/a3100TB43

H300/100

QZS/PH380/100TBSwivel3804501003153600TB70

PH380/100

QZF/PH380/100TBFixed380450100n/a3600TB70

PH380/100

QZS/SFT200/90TBSwivel200325902004200TB47

SFT200/90

QZF/SFT200/90TBFixed20032590n/a4200TB47

SFT200/90

QZ

Top plates have fixing holes to suit 16mm diameter bolts
Swivel top plate thickness 32mm
Fixed top plate thickness 16mm
Wheel locks and directional locks are available on QZ series swivel castors.
To order, add the appropriate suffix(es) to the castor part number: W = wheel lock D = directional lock.
For technical information covering load factors, etc., see Design Data
