BRange: Wheel & Axle:
Group: Axle Assemblies
Style: - (B)

Telephone us for further details

<< Back

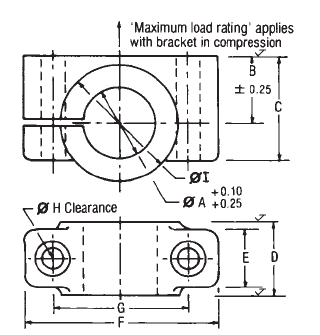

Part NoAxle Ø (A)mmB mmC mmD mmE mmF mmG mmH Ø mmI Ø mmWeight Kg
B1/2525355540301057012601.3
B1/3030355540301057012601.3
B1/3535355540301057012601.3
B1/4040355540301057012601.3
B2/4545457050401309016802.3
B2/5050457050401309016802.3
B3/606060956555170120201105.5
B3/707060956555170120201105.5
B4/75757511580702101502414010.2
B4/85857511580702101502414010.2
Axle Assemblies

MATERIAL: S.G. Cast Iron to BS2789: 1985: 420/12.
This series of four sizes of malleable cast iron axle brackets feature machined bores, bosses and mounting faces.
The brackets are slotted through one mounting hole, allowing the bracket to be positioned by bolting through the solid side, and the axle to be positioned laterally before being clamped by tightening the bolt through the slotted side.

Bolts can be supplied on request.
