BARange: Wheel & Axle:
Group: Axle Assemblies
Style: - (BA)

Telephone us for further details

<< Back

Part NoAxle Ø (A)mmMax Load KgB mmC mmD min mmD max mmE mmF Ø mmG mmH mmJ mmK mmL Ø mmWeight KgAxle Bracket
Axle Assemblies

* The ´Maximum Load Rating´ applies:
i) to gradually applied loads. For shock loads multiply by a ´shock loading factor´ of 0.65.
ii) to radial loads only. Where axial loads are to be applied in conjunction with radial loads, refer to HMC-Brauer for allowable loads.
iii) with axle brackets positioned within ´dimension E´.

AXLE MATERIAL: Steel to BS970: Part 1: 1983: 606M36 or 605M36.
The ´BA´ series axle assemblies are for mounting single wheels fitted with ball or roller bearings, the lock nut, lock washer, or self locking nuts and sleeve providing adjustment for opposed taper roller bearings.

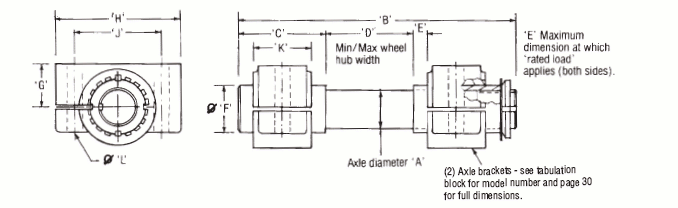

Axle diameter ´A´ and dimension ´D´ should be selected to match the bearing bore and hub width of the wheels to be fitted. The slotted axle brackets, in conjunction with the extended major axle diameter and sleeve (dimension ´C´) allow a wide tolerance in the positioning of the brackets, and also allows the wheel to be positioned laterally between the brackets - see ´B Series Axle Bracket´'.
The assembly is supplied complete with axle brackets, bearing retaining/adjustment nut and locking washer.
