Range: Castor:
Group : - Max Load

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
BP

All wheels can be supplied with alternative taper roller bearings on request.
100% tested. Humidity proof polyurethane compounds. All wheels supplied with precision ball bearing.
MATERIAL: Wheel centre - Precision machined cast iron. Tyre - Heavy Duty Premium Polyurethane.
BRACKET: Single piece hot forged alloy steel top plate. Alloy steel yoke base.

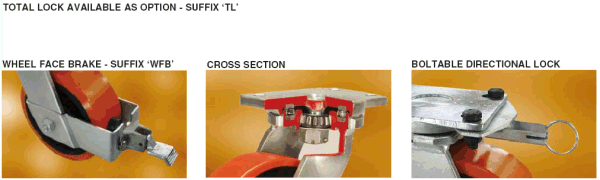

Precision CNC machined raceways combined with computer controlled induction hardening. 30mm integrally forged kingpin, UNF treaded with slotted nut for adjustment. 10mm thick fork legs robotically welded inside and outside. 12mm Axle. 4 position directional lock slots.
Top Plate (ISO 2184 Class 3) 175 x 140mm
Bolt Hole Spacing 140 x 105mm
Bolt Hole Diameter 14mm
