HQZ SeriesRange: Castor:
Group : HQZ Series - Max Load (7300kg)

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

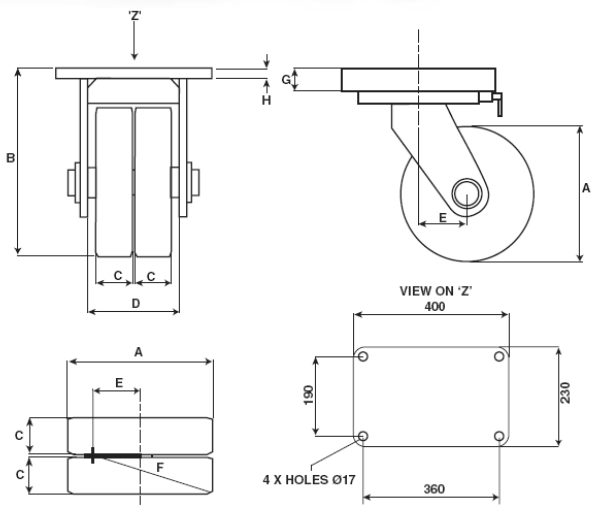

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
HQZS/H300/100TBSwivel3004351002706200TB109

H300/100

HQZF/H300/100TBFixed300435100n/a6200TB71

H300/100

HQZS/PH380/100TBSwivel3805151003317200TB168

PH380/100

HQZF/PH380/100TBFixed380515100n/a7200TB127

PH380/100

HQZS/SFT200/90TBSwivel200385902057300TB95

SFT200/90

HQZF/SFT200/90TBFixed20038590n/a7300TB57

SFT200/90

HQZ

Top plates have fixing holes to suit 16mm diameter bolts
Swivel top plate thickness 50mm (G)
Fixed top plate thickness 20mm (H)
Directional locks are standard on HQZS series castors.
For technical information covering load factors, etc., see Design Data
