Range: Wheel & Axle: Group: Axle Assemblies Style: - (CA)
Telephone us for further details									<< Back

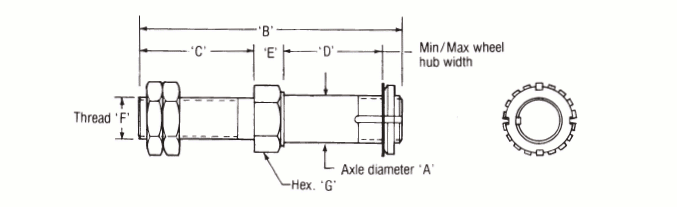

Part No	Axle Ø (A)mm	Max Load Kg	B mm	C mm	D min mm	D max mm	E mm	Thread F	Hex (G) A/F	Min Mounting Plate Thickness mm	Weight Kg
CA20	20	350	119	50	35	45	15	M27x2.0	32	12	0.7
CA25	25	600	137	60	40	52	15	M30x2.0	36	16	1
CA30	30	825	170	75	50	65	20	M36x3.0	46	18	1.7
CA35	35	1100	207	90	60	85	20	M42x3.0	50	22	2.5
* The ´Maximum Load Rating´ applies: i) to gradually applied loads. For shock loads multiply by a ´shock loading factor´ of 0.65. ii) to radial loads only. Where axial loads are to be applied in conjunction with radial loads, refer to HMC-Brauer for allowable loads. AXLE MATERIAL: Steel to BS970: Part 1: 1983: 606M36 or 605M36. This range of cantilevered stub axles is designed to mount single wheels with ball or roller bearings, the lock nut and lock washer, or self locking nuts providing adjustment for opposed taper roller bearings. Axle diameter ´A´ and dimension ´D´ should be selected to match the bearing bore and hub width of the wheel to be fitted. The assembly is supplied complete with bearing retaining/adjustment nut and locking washer, and a pair of half nuts for mounting.
