SDFRange: Wheel & Axle:
Group: Steel
Style: Double Flange - (SDF)

Click on Product Group code to view Bearing options and full Part Numbers.

<< Back

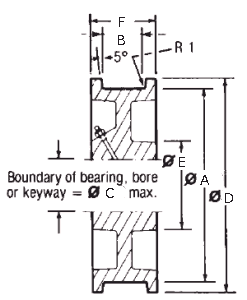

Product GroupTread Ø mm(A)Tread Width mm(B)Max Bore mm(C)Flange Ø mm(D)Hub Ø mm(E)Hub Width mm(F)Overall Width mm(G)Load KgWeight Kg
SDF75/35753550100-60-13502.5
SDF100/351003575125-60-18004
SDF150/5015050100190-80-390013
SDF200/5020050150240-90-510025
SDF225/5022550150270-100-580036
SDF225/6022560150270-100-700035
SDF250/6025060125295178100-770044
SDF300/5530055125345178100-850060
SDF300/6530065125345178100-1000059
SDF350/6035060150395202110-1080090
SDF350/7535075150395202110-1350090
SDF450/7045070150495200125-16200160
SDF450/8045080150495200125-18500160
SDF600/1006001001506600250150-30900350
Steel

Flanged wheels can be used for guidance paired with an unflanged rail wheel to allow a wide tolerance in the pitch of the rails.
MATERIAL: Steel to BS970; Part I: 1983: 080M40
OPERATING TEMPERATURE RANGE:
Plain bored or keywayed wheels -30ºC to 350ºC
Ball or taper roller bearinged wheels -30ºC to 120ºC
The ´maximum load rating´ given for each wheel is based on the full tread width being in contact with the rail. Working loads must be calculated based on the useable rail width and operating conditions - see ´Design Data´ paras. 5.1 and 5.3.
Alternative bore/bearing diameters and alternative bearing types (i.e. bronze bushes, self-lubricating bushes, roller bearings, spherical roller bearings, etc.) are available to order - see ´Design Data´ para. 6.0.
Plain bore wheels are not drilled and taped for greasing unless requested at time of order.
