TQZ SeriesRange: Castor:
Group : TQZ Series - Max Load (5100kg)

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

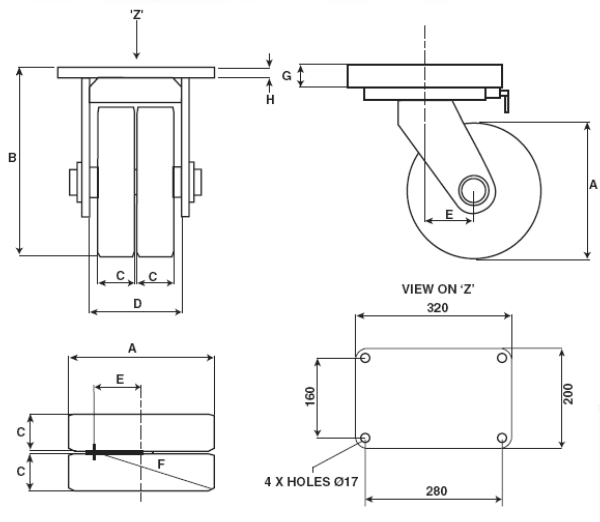

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
TQZS/H250/70TBSwivel250355702224000TB67

H250/70

TQZF/H250/70TBFixed25035570n/a4000TB46

H250/70

TQZS/H300/75TBSwivel300405752624600TB76

H300/75

TQZF/H300/75TBFixed30040575n/a4600TB55

H300/75

TQZS/PH250/75TBSwivel250355752244000TB83

PH250/75

TQZF/PH250/75TBFixed25035575n/a4000TB62

PH250/75

TQZS/PH300/75TBSwivel300405752605000TB100

PH300/75

TQZF/PH300/75TBFixed30040575n/a5000TB79

PH300/75

TQZS/SFT200/90TBSwivel200330901955100TB60

SFT200/90

TQZF/SFT200/90TBFixed20033090n/a5100TB55

SFT200/90

TQZ

Top plates have fixing holes to suit 16mm diameter bolts
Swivel top plate thickness 45mm (G)
Fixed top plate thickness 20mm (H)
Directional locks are standard on TQZS series castors.
For technical information covering load factors, etc., see Design Data
