Range: Wheel & Axle: |
||||||||||||||||
Click on Product Group code to view Bearing options and full Part Numbers. |
<< Back |
|||||||||||||||

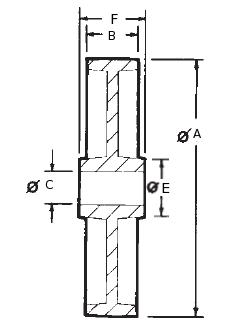

Product Group | Tread Ø mm(A) | Tread Width mm(B) | Max Bore mm(C) | Flange Ø mm(D) | Hub Ø mm(E) | Hub Width mm(F) | Overall Width mm(G) | Load Kg | Weight Kg | |||||||
N50/14 | 50 | 14 | 12 | - | 20 | 17 | - | 80 | 0.03 | |||||||
N63/23 | 63 | 23 | 11 | - | 20 | 33 | - | 85 | 0.05 | |||||||
N75/25 | 75 | 25 | 12 | - | 23 | 40 | - | 120 | 0.07 | |||||||
N85/75 | 85 | 75 | 20 | - | - | 73 | - | 410 | 0.54 | |||||||
N100/32 | 100 | 32 | 15 | - | 29 | 48 | - | 225 | 0.15 | |||||||
N125/35 | 125 | 35 | 15 | - | 29 | 48 | - | 295 | 0.23 | |||||||
N150/38 | 150 | 38 | 19 | - | 40 | 50 | - | 360 | 0.4 | |||||||
N150/40 | 150 | 40 | 20 | - | 48 | 60 | - | 500 | 0.5 | |||||||
N150/50 | 150 | 50 | 20 | - | 48 | 60 | - | 800 | 1.2 | |||||||
N200/50 | 200 | 50 | 20 | - | 48 | 60 | - | 500 | 0.66 | |||||||
N250/60 | 250 | 60 | 25 | - | 114 | 60 | - | 2000 | 2.3 | |||||||
Plain untyred nylon wheels are the least expensive type of wheel. They are
light in weight, and are resistant to impact, abrasion, corrosion, and the effect
of many chemicals. They can be fitted with bearings but are most often used
with their nylon bores running on a smooth steel axle. No lubrication is
necessary, but they will benefit from being oiled. Having little resilience they
tend to be noisiest when moving quickly over rough surfaces, and they can
mark floors if highly loaded. |
