UHQZ SeriesRange: Castor:
Group : UHQZ Series - Max Load (12000kg)

If enabled click on ´Wheel Data´ to view wheel specification.

<< Back

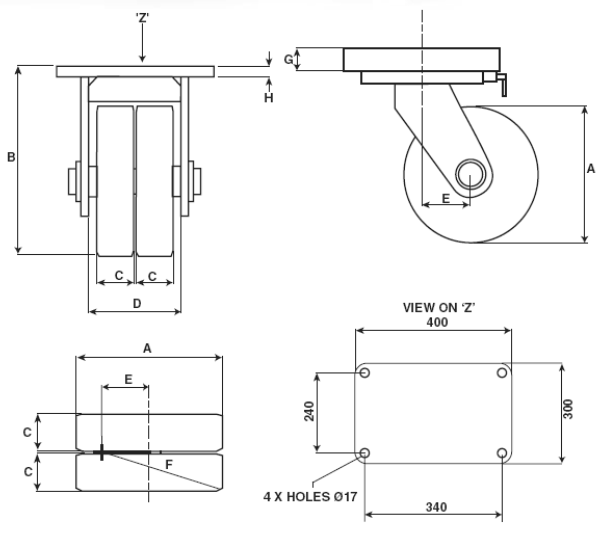

Part NoMountWheel Ø (A)Overall Height (B)Tread Width (C)Swivel Radius (F)Max Load RatingWheel Bearing TypeCastor Weight (kg)Wheel Data
UHQZS/H460/75TBSwivel460595753907000TB178

H460/75

UHQZF/H460/75TBFixed46059575n/a7000TB130

H460/75

UHQZS/PH500/100TBSwivel5006351004129600TB240

PH500/100

UHQZF/PH500/100TBFixed500635100n/a9600TB192

PH500/100

UHQZS/SFT350/110TBSwivel35046511033012000TB180

SFT350/110

UHQZF/SFT350/110TBFixed350465110n/a12000TB132

SFT350/110

UHQZ

Top plates have fixing holes to suit 16mm diameter bolts
Swivel top plate thickness 50mm (G)
Fixed top plate thickness 25mm (H)
Directional locks are standard on UHQZS series castors.
For technical information covering load factors, etc., see Design Data
