ARange: Wheel & Axle:
Group: Axle Assemblies
Style: - (A)

Telephone us for further details

<< Back

Part NoAxle Ø (A)mmMax Load KgB Ø mmC mmD min mmD max mmE mmF mmG mmH mmJ mmK Ø mmAxle Bracket

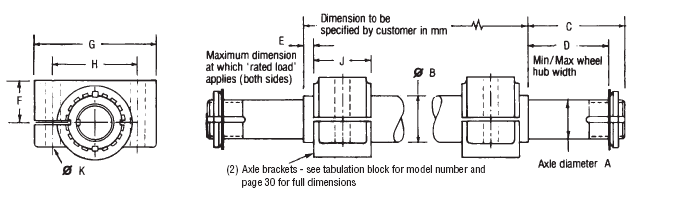

A25/****251500306240527535105704012B1/30
A30/****302500357550657535105704012B1/35
A35/****3530004097608510035105704012B1/40
A40/****404000501138510010045130905016B2/50
A50/****5063006012885110120601701206520B3/60
A60/****6085007013085110120601701206520B3/70
A75/****75120008515085110150752101508024B4/85
Axle Assemblies

**** Denotes dimension between bearing abutment shoulders in mm to be specified by the customer.
 * The ´Maximum Load Rating´ applies per wheel:
i) to gradually applied loads. For shock loads multiply by a ´shock loading factor´ of 0.65.
ii) to radial loads only. Where axial loads are to be applied in conjunction with radial loads, refer to HMC-Brauer for allowable loads.
iii) with axle brackets positioned within ´dimension E´.

AXLE MATERIAL: Steel to BS970: Part 1: 1983:606M36 or 605M36.
These axle assemblies are for mounting pairs of wheels fitted with ball or roller bearings, the lock nuts and washers, or self locking nuts providing adjustment for opposed taper roller bearings.
Axle diameter ´A´ and dimension ´D´ should be selected to match the bearing bore and hub width of the wheels to be fitted. The slotted axle brackets allow lateral positioning of the axle and wheels for alignment on installation - see ´B Series Axle Bracket´.
The assembly is supplied complete with axle brackets, bearing retaining/adjustment nuts, and locking washers.
