CDFRange: Wheel & Axle:
Group: Cast Iron
Style: Double Flange - (CDF)

Click on Product Group code to view Bearing options and full Part Numbers.

<< Back

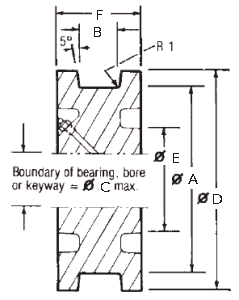

Product GroupTread Ø mm(A)Tread Width mm(B)Max Bore mm(C)Flange Ø mm(D)Hub Ø mm(E)Hub Width mm(F)Overall Width mm(G)Load KgWeight Kg
CDF130/401304060163-70-6508
CDF150/501505060185-80-100012
CDF200/45200458023511080-120016
CDF200/55200558023511090-145018
CDF250/50250507028510080-165021
CDF300/603006075345105100-230032
Cast Iron

Cast iron rail wheels are the most economic for light to medium duty, but they have a limited service life when compared to steel wheels, and are unsuitable for high rotational speeds or where substantial shock loads are to be withstood.
Flanged wheels can be used for guidance paired with an unflanged rail wheel to allow a wide tolerance in the pitch of the rails.
MATERIAL: Cast iron to BS1452: 1977: Grade 200.
OPERATING TEMPERATURE RANGE:
Plain bored or keywayed wheels - 30ºC to 250ºC
Ball or taper roller bearinged wheels - 30ºC to 120ºC
The ´maximum load rating´ given for each wheel is based on the full tread width being in contact with the rail. Working loads must be calculated based on the useable rail width and operating conditions - see ´Design Data´ paras. 5.1 and 5.3.
Alternative bore/bearing diameters and alternative bearing types (i.e. bronze bushes, self-lubricating bushes, roller bearings, spherical roller bearings, etc.) are available to order - see ´Design Data´ para. 6.0.
