SSFRRange: Wheel & Axle:
Group: Steel
Style: Single Flange Radius Tread - (SSFR)

Click on Product Group code to view Bearing options and full Part Numbers.

<< Back

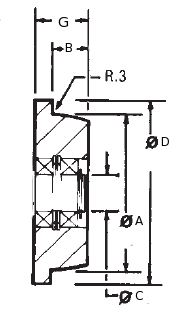

Product GroupTread Ø mm(A)Tread Width mm(B)Max Bore mm(C)Flange Ø mm(D)Hub Ø mm(E)Hub Width mm(F)Overall Width mm(G)Load KgWeight Kg
SSFR55/2555251270--351601
SSFR85/25852520100--353702.5
SSFR105/251052525125--357004
SSFR133/351333525160--4710007
SSFR175/351753530200--50150011.5
Steel

The SFR (cast iron) and SSFR (Steel) ranges of wheel assemblies have been designed to fit within standard sections of channel and ´I´ beams. The radiused tread accommodates the angle of the section and improves the wear and tracking characteristics.
MATERIAL: SFR series - Cast iron to BS1452: 1977: Grade 200
SSFR series - Steel to BS970: Part 1: 1983: 080M40
Axles - Steel to BS970: Part 1: 1983: 606M36 or 605M36
OPERATING TEMPERATURE RANGE - 30ºC to 120ºC.
SFR (cast iron) wheels are not suitable where substantial shock loads are to be withstood, and they have a limited service life in comparison with the equivalent SSFR wheel.
When shock loadings are to be withstood by either the SFR or SSFR ranges the ´maximum load rating´ should be reduced by multiplying by a shock loading factor of 0.65.
