Range: Wheel & Axle: Group: Steel Style: Single Flange Flat Tread - (SSFF)
Click on Product Group code to view Bearing options and full Part Numbers.									<< Back

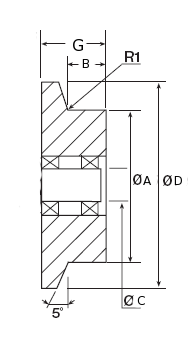

Product Group	Tread Ø mm(A)	Tread Width mm(B)	Max Bore mm(C)	Flange Ø mm(D)	Hub Ø mm(E)	Hub Width mm(F)	Overall Width mm(G)	Load Kg	Weight Kg
SSFF55/25	55	25	20	70	-	-	35	370	1.1
SSFF80/25	80	25	25	95	-	-	35	700	2
SSFF100/25	100	25	25	115	-	-	35	1000	4
SSFF150/35	150	35	30	180	-	-	50	1500	7.5
SSFF200/35	200	35	40	230	-	-	50	2000	12
HMC Brauer has added a flat version to its popular ´I´ beam and channel radiused tread and wheel range. The new steel, flat tread, single flanged range is designed to suit parallel flanged channels and universal beams (to BS4, Part I 1993). The axles have been significantly upgraded to increase the load carrying capacity of the assembly. MATERIAL: Steel to BS970: Part 1: 1983: 080M40 OPERATING TEMPERATURE RANGE - 30ºC to 120ºC. When shock loadings are to be withstood the ´maximum load rating´ should be reduced by multiplying by a shock loading factor of 0.65.
