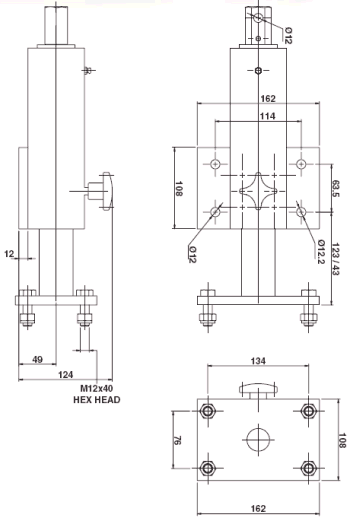

HMC Brauer have developed a range of jacking units
expanding further our comprehensive range of heavy duty
castors and wheels. The jacking units are highly
adaptable across a broad range of environments and
applications. Many options are available giving this new
product unsurpassed flexibility for the worlwide market
place. Availability and delivery is enhanced due to
products being totally manufactured within the wheels
and castors division based in the UK. Robust design.
Load rating up to 1000kg per unit. Integral swivel
mechanism incorporated into jacking castor. Designed to
suit our GG fixed castor. Wheel options from 100mm to
250mm diameter. Wheel options include steel,
polyurethane and nylon. Jacking units now form part of
HMC Brauer comprehensive range of wheels and castors. |
||||||||

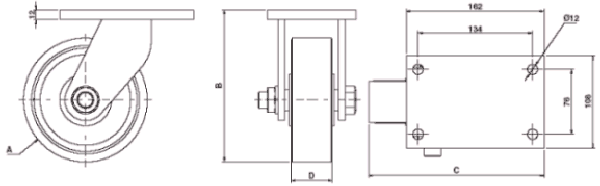

Part No | Mount | Wheel Ø (A) | Overall Height (B) | Overall Length (C) | Tread Width (D) | Max Load Rating | Wheel Bearing Type | Castor Weight |
JGG/H100/40BJ | Fixed | 100 | 133 | 171 | 40 | 450 | BJ | 8 |
JGG/H150/50BJ | Fixed | 150 | 184 | 206 | 50 | 900 | BJ | 9 |
JGG/H200/40BJ | Fixed | 200 | 235 | 241 | 40 | 900 | BJ | 11 |
JGG/H250/45BJ | Fixed | 250 | 286 | 276 | 45 | 1300 | BJ | 16 |
