VerticalRange: Pneumatic Clamps:
Group: Vertical

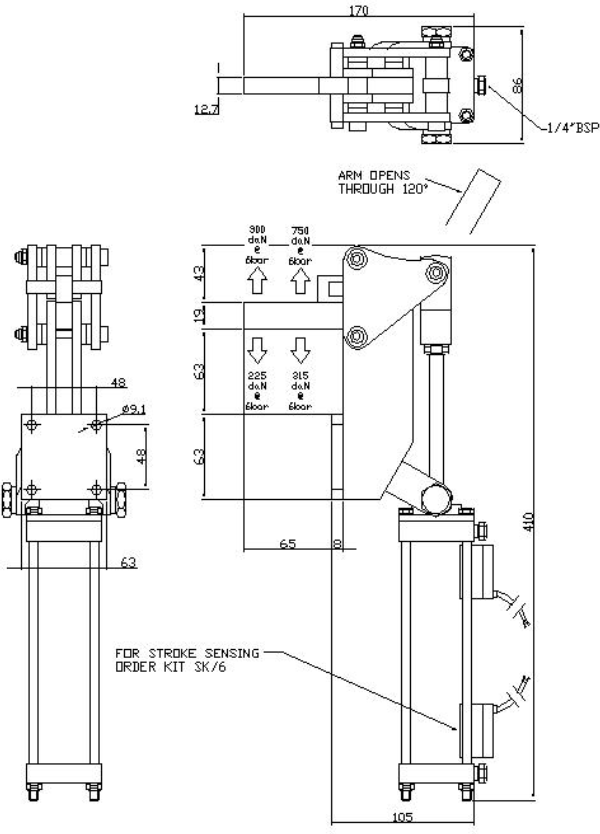

Product: V750X

Click on Back to return to Product Group details.

<< Back

Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)
V750X 750 daN 2-6 bar (30-88 p.s.i.g.) 30 0.27L³ (16.5 cu. in.) 3.85
Vertical
