VerticalRange: Pneumatic Clamps:
Group: Vertical

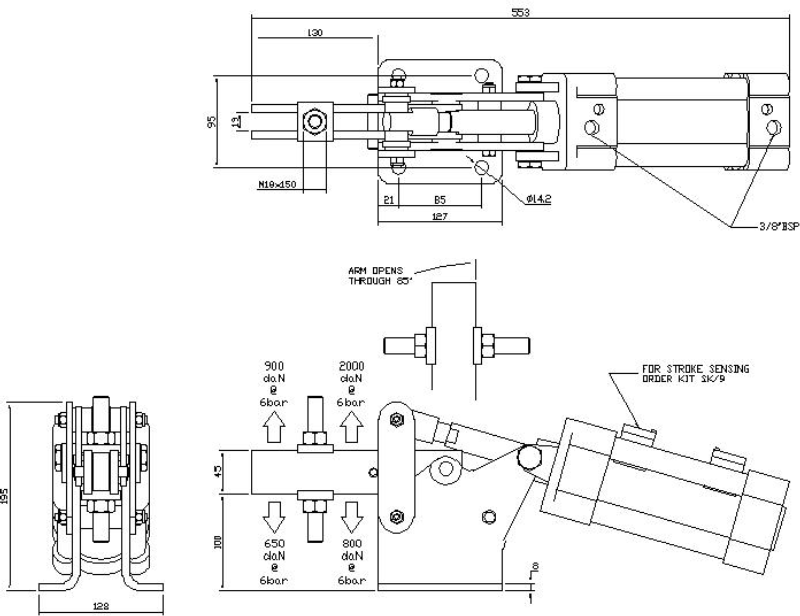

Product: V2000X

Click on Back to return to Product Group details.

<< Back
Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)
V2000X 2000 daN 2-6 bar (30-88 p.s.i.g.) 10 0.76L³ (46.4 cu. in.) 10.3
Vertical
