VerticalRange: Pneumatic Clamps:
Group: Vertical

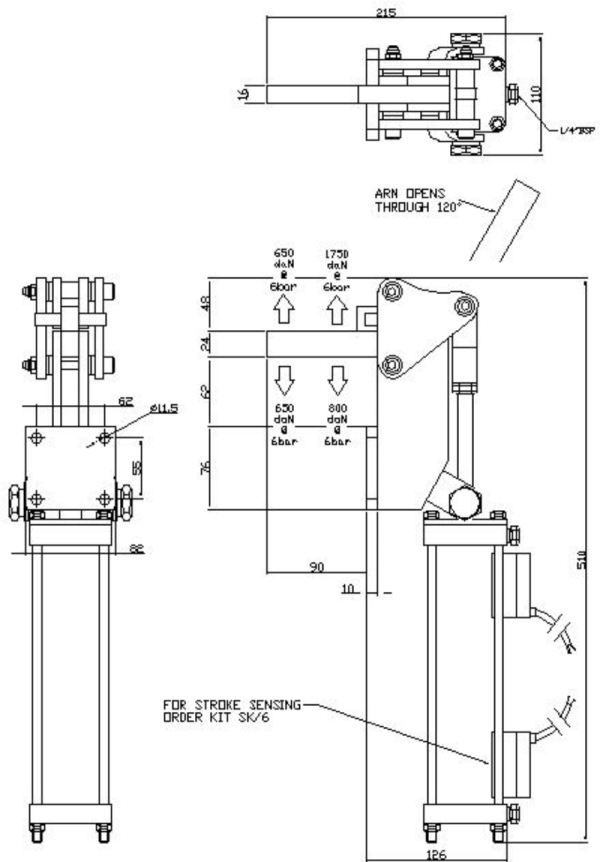

Product: V1750X

Click on Back to return to Product Group details.

<< Back
Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)
V1750X 1750 daN 2-6 bar (30-88 p.s.i.g.) 15 0.75L³ (45.7 cu. in.) 6.8
Vertical
