SwingRange: Pneumatic Clamps:
Group: Swing

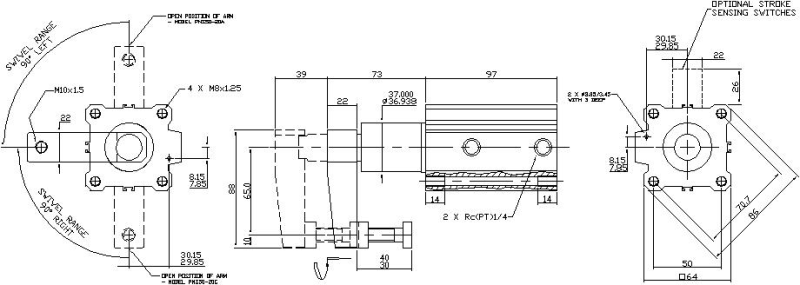

Product: PNS50-20C PNS50-20A

Click on Back to return to Product Group details.

<< Back
Part No Swing Max. Holding Force Operating Pressure Rotary Stroke Clamping Stroke Swept Volume Per Cycle Weight (kg)
PNS50-20C Clockwise 160 daN 2 - 10 bar 19mm 20mm 0.14L 1.45
PNS50-20A Anti-clockwise 160 daN 2 - 10 bar 19mm 20mm 0.14L 1.45
Swing
