SwingRange: Pneumatic Clamps:
Group: Swing

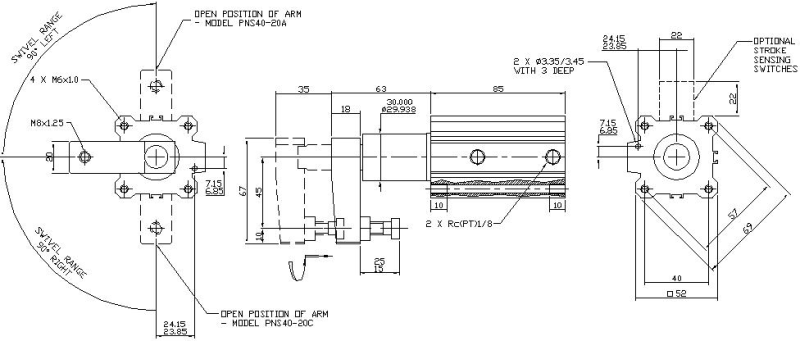

Product: PNS40-20C PNS40-20A

Click on Back to return to Product Group details.

<< Back

Part No Swing Max. Holding Force Operating Pressure Rotary Stroke Clamping Stroke Swept Volume Per Cycle Weight (kg)
PNS40-20C Clockwise 105 daN 2 - 10 bar 15mm 20mm 0.06L 0.84
PNS40-20A Anti-clockwise 105 daN 2 - 10 bar 15mm 20mm 0.06L 0.84
Swing
