SwingRange: Pneumatic Clamps:
Group: Swing

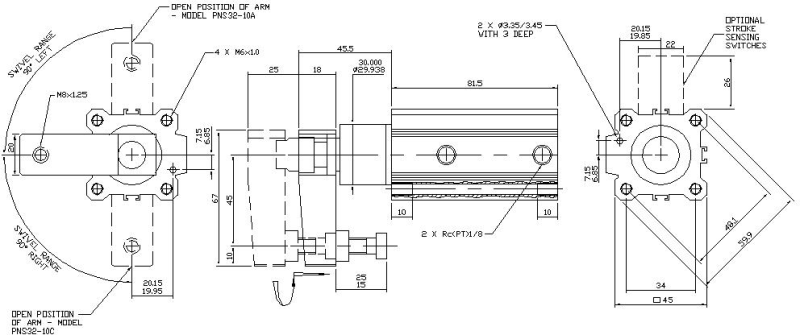

Product: PNS32-10C PNS32-10A

Click on Back to return to Product Group details.

<< Back
Part No Swing Max. Holding Force Operating Pressure Rotary Stroke Clamping Stroke Swept Volume Per Cycle Weight (kg)
PNS32-10C Clockwise 60 daN 2 - 10 bar 15mm 10mm 0.035L 0.7
PNS32-10A Anti-clockwise 60 daN 2 - 10 bar 15mm 10mm 0.035L 0.7
