SwingRange: Pneumatic Clamps:
Group: Swing

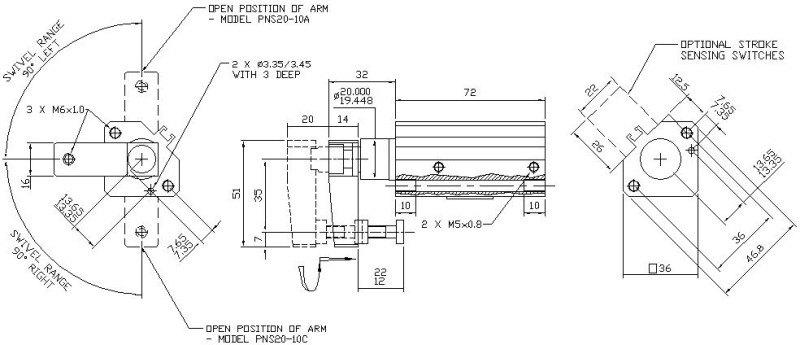

Product: PNS20-10C PNS20-10A

Click on Back to return to Product Group details.

<< Back
Part No Swing Max. Holding Force Operating Pressure Rotary Stroke Clamping Stroke Swept Volume Per Cycle Weight (kg)
PNS20-10C Clockwise 20 daN 2 - 10 bar 9.5mm 10mm 0.01L 0.35
PNS20-10A Anti-clockwise 20 daN 2 - 10 bar 9.5mm 10mm 0.01L 0.35
Swing
