VerticalRange: Pneumatic Clamps:
Group: Vertical
Product: P1200X

Click on Back to return to Product Group details.

<< Back
Part No Nominal holding force Operating Pressure Range Max. Cycles/Min. at 6 bar Swept Volume Per Cycle Weight (kg)

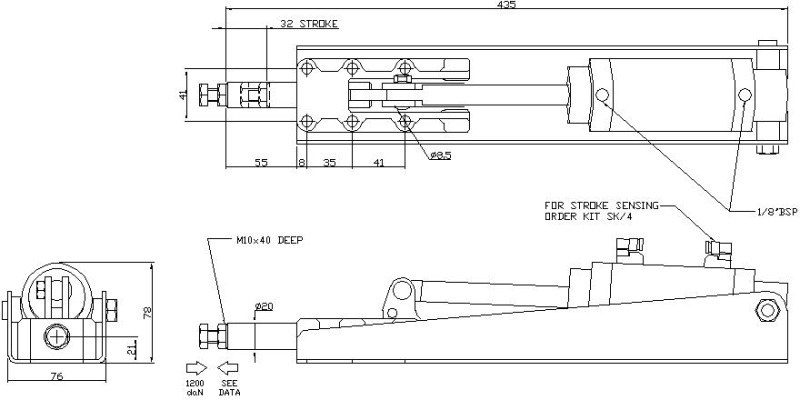

P1200X 1200 daN 2-6 bar (30-88 p.s.i.g.) 50 0.28L³ (16.8 cu. in.) 3.7
Vertical
