VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: Straight Base Stub

Click on Back to return to Product Group details.

<< Back

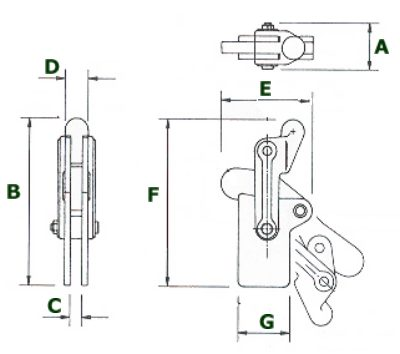

Part No Nominal force Weight (Kg) A B C D E F G H File
VA300T 300daN 0.15 26 86 6 20 52 86 27 -
VA700T 700daN 0.8 43 144 10 32 79 144 45 -
VA1200T 1200daN 1.45 48 177 12 38 106 176 50 -
VA2400T 2400daN 3.2 62 220 16 50 133 220 63 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
