VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: Swivel Base Stub

Click on Back to return to Product Group details.

<< Back

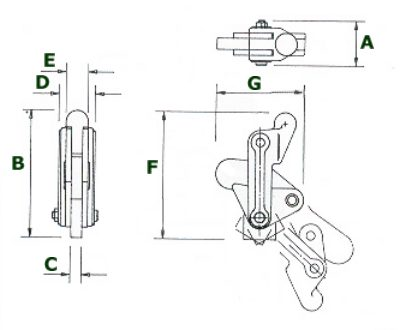

Part No Nominal force Weight (Kg) A B C D E F G H File
VA300S 300daN 0.15 26 66 6 20 12 dia. 66 52 - Zipped
VA700S 700daN 0.7 20 114 10 32 20 dia. 114 79 -
VA1200S 1200daN 1.3 24 139 12 38 22 dia. 141 106 -
VA2400S 2400daN 2.9 32 177 16 50 30 dia. 177 133 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
