VA Heavy Duty VerticalRange: Clamp
Group: VA Heavy Duty Vertical
Style: Flanged Base Fixed

Click on Back to return to Product Group details.

<< Back

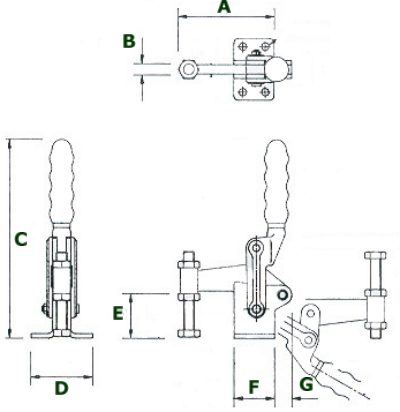

Part No Nominal force Weight (Kg) A B C D E F G H File
VA700/2C 700daN 1.25 124 M12x100 215 67 48 45 20 -
VA1200/2C 1200daN 1.95 144 M12x100 250 88 58 50 24 -
VA2400/2C 2400daN 4.1 188 M16x150 295 105 70 63 35 -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
VA Heavy Duty Vertical
