Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Front Mounting Loose

Click on Back to return to Product Group details.

<< Back

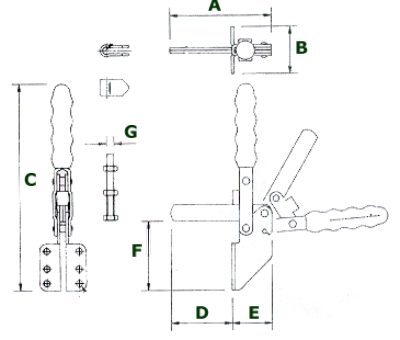

Part No Nominal force Weight (Kg) A B C D E F G H File
V300/3A 300daN 0.5 143 51 235 93 50 82 M8x60 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
