Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Flanged Base Fixed

Click on Back to return to Product Group details.

<< Back

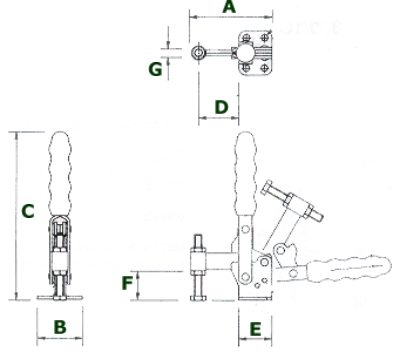

Part No Nominal force Weight (Kg) A B C D E F G H File
V100/2C 100daN 0.1 65 34 103 37 28 22 M5 - Zipped
V150/2C 150daN 0.15 60 38 125 33 27 23 M6 - Zipped
V200/2C 200daN 0.2 77 42 135 42 35 29 M6x50 -
V250/2C 250daN 0.38 88 45 175 45 35 32 M8x60 -
V300/2C 300daN 0.48 114 51 186 65 43 32 M8x60 - Zipped
V350/2C 350daN 0.75 124 64 240 65 50 41 M10x80 - Zipped
V450/2C 450daN 1.3 137 64 228 74 53 49 M12x100 - Zipped
V550/2C 550daN 2.3 197 95 312 108 76 82 M16x150 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
