Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Flanged Base Adjustable

Click on Back to return to Product Group details.

<< Back

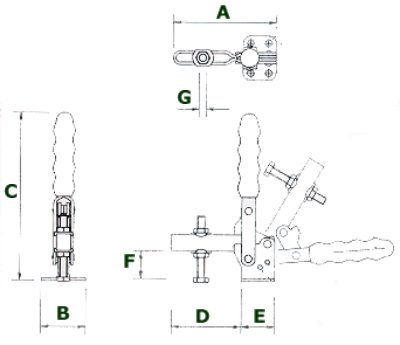

Part No Nominal force Weight (Kg) A B C D E F G H File
V70/2BT 70daN 0.1 56.3 25.4 35 30.1 26.2 12.7 - - Zipped
V70/2BTSS 70daN 0.1 56.3 25.4 35 30.1 26.2 12.7 - - Zipped
V75/2B 75daN 0.05 57 34 98 31 26 16 M5 -
V75/2BSS 75daN 0.05 57 34 98 31 26 16 M5 -
V100/2B 100daN 0.11 67 34 103 39 28 22 M5 -
V150/2B 150daN 0.15 70 38 125 43 27 23 M6 -
V150/2BSS 150daN 0.15 70 38 125 43 27 23 M6 -
V200/2B 200daN 0.2 79 42 135 44 35 29 M6x50 -
V250/2B 250daN 0.38 110 45 175 74 35 32 M8x60 -
V250/2BSS 250daN 0.38 110 45 175 74 35 32 M8x60 -
V300/2B 300daN 0.48 143 52 186 100 43 42 M8x60 -
V350/2B 350daN 0.8 146 1664 220 95 50 43 M10x80 -
V450/2B 450daN 1.35 177 64 228 122 53 51 M12x100 -
V550/2B 550daN 2.4 231 95 312 154 76 82 M16x150 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
