Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Flanged Base Loose

Click on Back to return to Product Group details.

<< Back

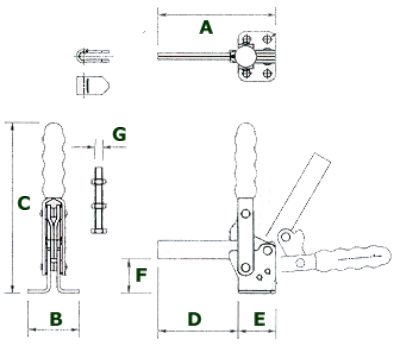

Part No Nominal force Weight (Kg) A B C D E F G H File
V250/2A 250daN 0.38 112 45 175 77 35 32 M8x60 -
V250/2AL 250daN 0.38 122 45 175 77 35 32 M8x60 -
V300/2A 300daN 0.48 143 52 186 100 43 34 M10x80 - Zipped
V350/2A 350daN 0.8 149 64 220 98 50 43 M10x80 - Zipped
V450/2A 450daN 1.25 180 64 228 127 53 51 M12x100 - Zipped
V550/2A 550daN 2.2 236 95 312 159 76 82 M16x150 -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
