Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Straight Base Fixed

Click on Back to return to Product Group details.

<< Back

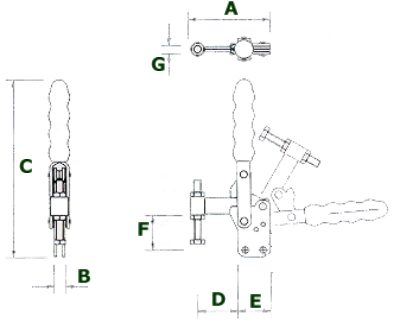

Part No Nominal force Weight (Kg) A B C D E F G H File
V100/1C 100daN 0.1 65 5 112 37 28 27 M5 - Zipped
V150/1C 150daN 0.15 60 12 135 26 27 28 M6 -
V200/1C 200daN 0.2 77 6.3 150 42 35 37 M6x50 - Zipped
V250/1C 250daN 0.38 87 12 190 47 35 37 M8x60 - Zipped
V300/1C 300daN 0.48 114 13 202 65 43 39 M8x60 - Zipped
V350/1C 350daN 0.75 124 16 240 65 50 52 M10x80 - Zipped
V450/1C 450daN 1.3 137 20 246 74 53 57 M12x100 - Zipped
V550/1C 550daN 2.3 196 20 345 108 76 100 M16x150 -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
