Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Straight Base Adjustable

Click on Back to return to Product Group details.

<< Back

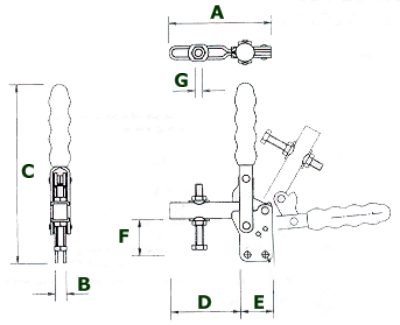

Part No Nominal force Weight (Kg) A B C D E F G H File
V75/1B 75daN 0.05 57 8 106 31 26 22 M5 - Zipped
V75/1BSS 75daN 0.05 57 8 106 31 26 22 M5 - Zipped
V100/1B 100daN 0.11 66 5 112 38 28 27 M5 - Zipped
V150/1B 150daN 0.15 70 12 135 43 27 28 M6 -
V150/1BSS 150daN 0.15 70 12 135 43 27 28 M6 -
V200/1B 200daN 0.15 79 6 150 44 35 37 M6x50 - Zipped
V250/1B 250daN 0.38 110 12 190 75 35 39 M8x60 -
V250/1BSS 250daN 0.38 110 12 190 75 35 39 M8x60 -
V300/1B 300daN 0.48 142 13 202 98 43 42 M8x60 - Zipped
V350/1B 350daN 0.8 146 16 240 95 50 54 M10x80 -
V450/1B 450daN 1.35 175 20 246 122 53 59 M12x100 -
V550/1B 550daN 2.4 230 20 345 154 76 102 M16x150 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
