Vertical ToggleRange: Clamp
Group: Vertical Toggle
Style: Straight Base Loose

Click on Back to return to Product Group details.

<< Back

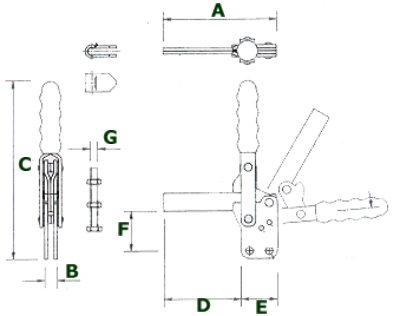

Part No Nominal force Weight (Kg) A B C D E F G H File
V250/1A 250daN 0.38 112 12 190 77 35 39 M8x60 -
V250/1AL 250daN 0.38 122 12 190 87 35 39 M8x60 -
V300/1A 300daN 0.48 143 13 202 100 43 42 M10x80 - Zipped
V350/1A 350daN 0.8 149 16 240 98 50 54 M10x80 - Zipped
V450/1A 450daN 1.25 180 20 246 127 53 59 M12x100 - Zipped
V550/1A 550daN 2.2 235 20 345 159 76 102 M16x150 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
