AccessoriesRange: Clamp
Group: Accessories
Style: T Bar Assembly

Click on Back to return to Product Group details.

<< Back

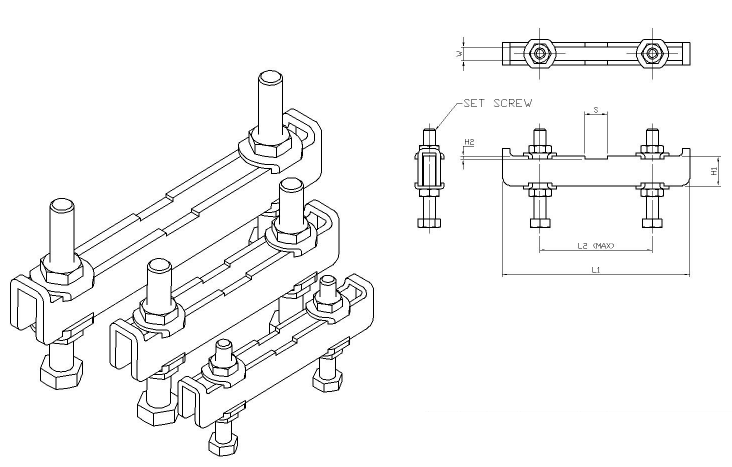

Part No For Use With Set Screw L1 L2 H1 H2 S W - - -
T250 H250 V250 V300 MB0860 125 95 20 2 15 9 - - -
T350 H350 V350 MB1085 145 110 24 2 19.5 11 - - -
T450 H450 V450 H700 MB12100 200 160 25 2 23.3 13 - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
