Push-PullRange: Clamp
Group: Push-Pull
Style: Precision

Click on Back to return to Product Group details.

<< Back

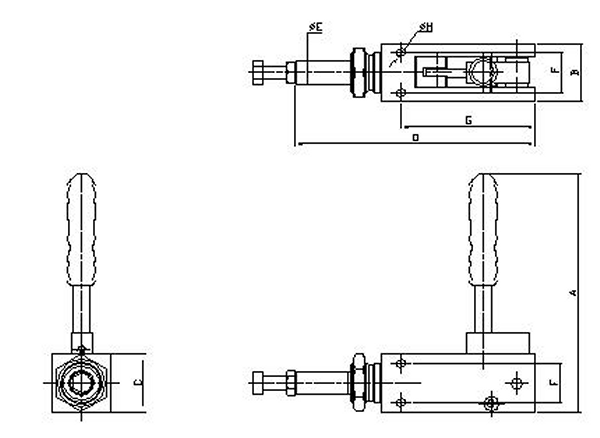

Part No Nominal force Weight (Kg) A B C D ØE F G ØH File
SP700 700DaN 0.83 145 35 35 145 14 24 81 5.5 Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
