AccessoriesRange: Clamp
Group: Accessories
Style: Spindle Retainers

Click on Back to return to Product Group details.

<< Back

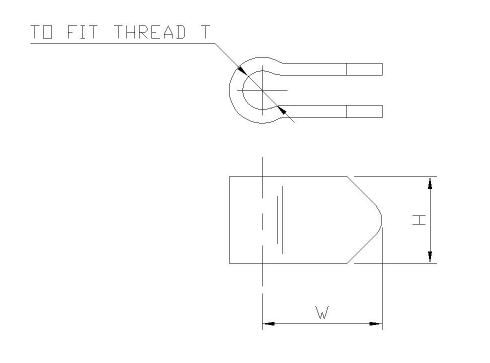

Part No Thread T H W For Clamps With Type A Arm - - - - - - -
R/08 M8 17.5 24 V250 H250 V300 - - - - - - -
R/10 M10 22 30 V350 H350 - - - - - - -
R/12 M12 26 32 V450 H450 - - - - - - -
R/16 M16 32 35 V550 - - - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
