Push-PullRange: Clamp
Group: Push-Pull
Style: Slimline

Click on Back to return to Product Group details.

<< Back

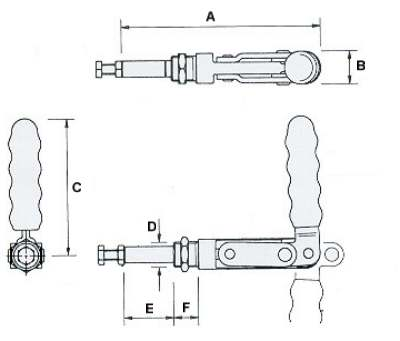

Part No Nominal force Weight (Kg) A B C D E F G H File
P350 350daN 0.2 123 23 97 M16x1.5 33 16 - -
P550 550daN 0.45 162 27 118 M20x1.5 40 20 - -
P750 750daN 1 238 35 135 M24x1.5 70 23 - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
