Push-PullRange: Clamp
Group: Push-Pull
Style: Heavy Duty Long Handle

Click on Back to return to Product Group details.

<< Back

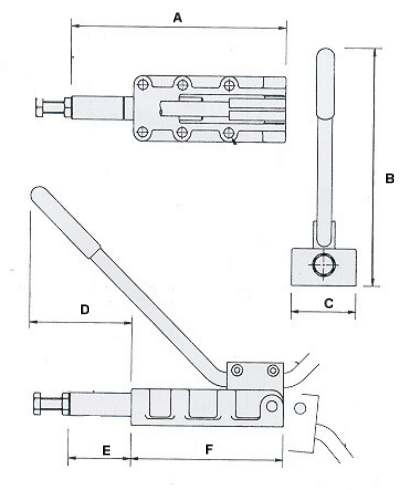

Part No Nominal force Weight (Kg) A B C D E F G H File
P600L 600daN 0.55 127 130 46 65 38 89 - -
P1200L 1200daN 1.6 190 200 58 100 55 135 - -
P2500L 2500daN 4.15 297 280 80 130 102 195 - - Zipped
P5000L 5000daN 7.1 390 355 84 172 138 254 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
