Push-PullRange: Clamp
Group: Push-Pull
Style: Heavy Duty

Click on Back to return to Product Group details.

<< Back

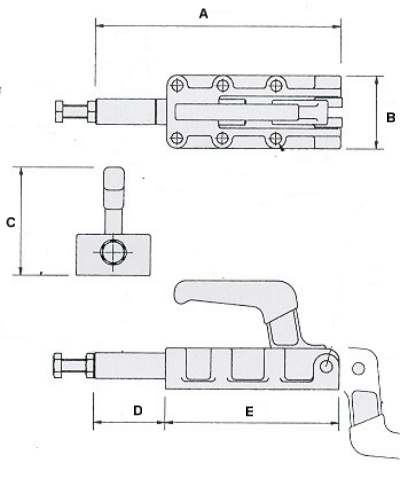

Part No Nominal force Weight (Kg) A B C D E F G H File
P600 600daN 0.45 127 46 67 38 89 - - -
P1200 1200daN 1.35 190 58 88 55 135 - - -
P2500 2500daN 3.6 297 80 108 102 196 - - -
P5000 5000daN 6.2 390 84 125 138 254 - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
