Push-PullRange: Clamp
Group: Push-Pull
Style: Standard

Click on Back to return to Product Group details.

<< Back

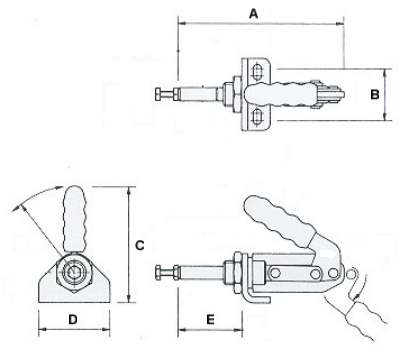

Part No Nominal force Weight (Kg) A B C D E F G H File
P50 50daN 0.05 67 28 42 28 34 - - -
P50SS 50daN 0.05 67 28 42 28 34 - - -
P100 100daN 0.15 68 25 96 44 33 - - -
P100SS 100daN 0.15 68 25 96 44 33 - - -
P200 200daN 0.35 110 30 137 57 54 - - -
P200SS 200daN 0.35 110 30 137 57 54 - - -
P250 250daN 0.3 135 42 85 57 53 - - -
P400 400daN 0.8 175 42 150 64 93 - - -
P400SS 400daN 0.8 175 42 150 64 93 - - -
P450 450daN 0.75 173 45 120 64 60 - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
