AccessoriesRange: Clamp
Group: Accessories
Style: Neoprene Pads

Click on Back to return to Product Group details.

<< Back

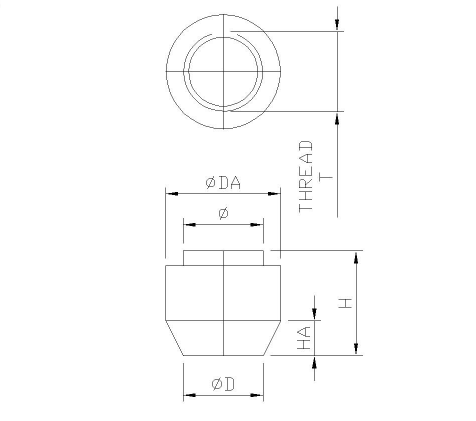

Part No Thread T H HA ØD ØDA Ø Fits Spindle - - - -
NP/05 - 10 1 - 12 - M0525 M0535 - - - -
NP/06 M6 14 4 11 15 11 M0650 - - - -
NP/08 M8 18 6 13 19 15 M0865 - - - -
NP/10 M10 21 7 16 23 17 M1085 - - - -
NP/12 M12 23 7 19 26 21 M12100 - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
