AccessoriesRange: Clamp
Group: Accessories
Style: Swivel Foot Spindles

Click on Back to return to Product Group details.

<< Back

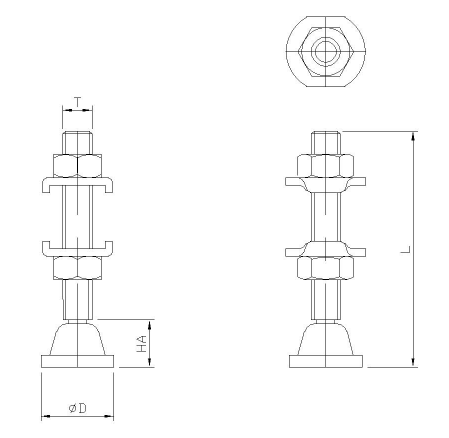

Part No Thread T Length L ØD ØDA Fits Models - - - - - -
MS0535 M5 35 12 10 V75 H75 V100 CV75 V75X - - - - - -
MS0650 M6 50 12 10 V150 V200 H150 P250 P350 - - - - - -
MS0865 M8 65 20 13 V250 V300 CV250 P300 P550P600 P600L P600X P200 - - - - - -
MS1085 M10 85 20 15 V350 H350 CV350 P400 P450 P750 P1200 P1200L P1200X - - - - - -
MS12100 M12 100 25 20 V450 V450X H450 H700 VA700 VA1200 - - - - - -
MS16150 M16 150 45 30 V550 VA2400 - - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
