LatchRange: Clamp
Group: Latch
Style: Vertical Latch

Click on Back to return to Product Group details.

<< Back

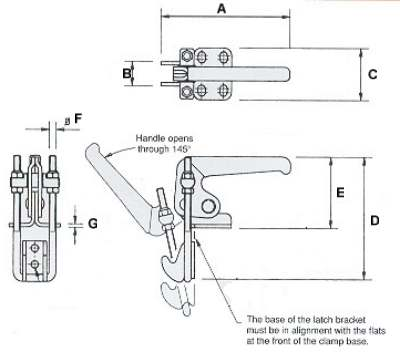

Part No Nominal force Weight (Kg) A B C D E F G H File
LU200V 200daN 0.05 76 16 36 0.73 42 4 2.5 - Zipped
LU200VSS 200daN 0.05 76 16 36 0.73 42 4 2.5 - Zipped
LU400V 400daN 0.25 115 21 47 0.78 63 6 3 -
LU400VSS 400daN 0.25 115 21 47 0.78 63 6 3 -
LU700V 700daN 0.7 152 28 64 0.76 84 8 4 -
LU700VSS 700daN 0.7 152 28 64 0.76 84 8 4 -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
