LatchRange: Clamp
Group: Latch
Style: Horizontal Latch

Click on Back to return to Product Group details.

<< Back

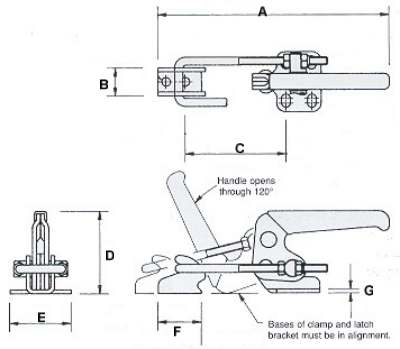

Part No Nominal force Weight (Kg) A B C D E F G H File
LU2000H 2000daN 1.4 270/320 28 39/88 115 74 65 10 - Zipped
LU4000H 4000daN 2.6 335/395 34 52/112 132 84 78 12 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
