LatchRange: Clamp
Group: Latch
Style: Horizontal Latch

Click on Back to return to Product Group details.

<< Back

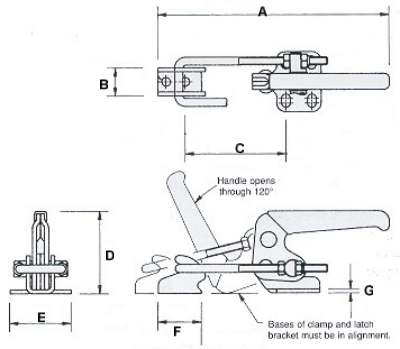

Part No Nominal force Weight (Kg) A B C D E F G H File
LU200H 200daN 0.05 0.77 16 0.55 42 36 23 2.5 -
LU200HSS 200daN 0.05 0.77 16 0.55 42 36 23 2.5 -
LU400H 400daN 0.25 0.78 21 0.52 63 47 32 3 -
LU400HSS 400daN 0.25 0.78 21 0.52 63 47 32 3 -
LU700H 700daN 0.7 0.76 28 0.5 84 64 40 4 -
LU700HSS 700daN 0.7 0.76 28 0.5 84 64 40 4 -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
