Horizontal ToggleRange: Clamp
Group: Horizontal Toggle
Style: Flanged Base Fixed

Click on Back to return to Product Group details.

<< Back
H50/2C 50daN 0.025 70 24 22 21 24 11 - - Zipped
H75/2C 75daN 0.1 108 27 36 23 25 19 - - Zipped
H150/2C 150daN 0.25 155 40 53 38 38 25 - -

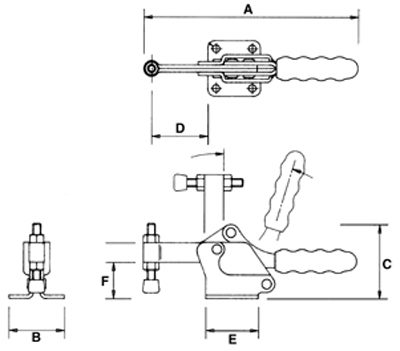

For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
