Horizontal ToggleRange: Clamp
Group: Horizontal Toggle
Style: Flanged Base Adjustable

Click on Back to return to Product Group details.

<< Back

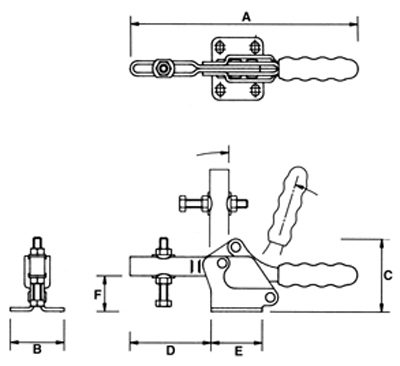

Part No Nominal force Weight (Kg) A B C D E F G H File
H50/2B 50daN 0.036 70 24 22 26 24 11.5 - -
H50/2BSS 50daN 0.036 70 24 22 26 24 11.5 - -
H75/2B 75daN 0.1 116 27 36 37 25 19 - -
H75/2BSS 75daN 0.1 116 27 36 37 25 19 - -
H150/2B 150daN 0.25 170 40 53 61 38 25 - -
H150/2BSS 150daN 0.25 170 40 53 61 38 25 - -
H250/2B 250daN 0.5 224 46 67 79 42 34 - -
H350/2B 350daN 0.9 274 59 91 108 59 45 - -
H450/2B 450daN 1.6 305 67 110 128 66 59 - -
H700 700daN 1.15 270 48 84 78 81 45 - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
