Horizontal ToggleRange: Clamp
Group: Horizontal Toggle
Style: Flanged Base Loose

Click on Back to return to Product Group details.

<< Back

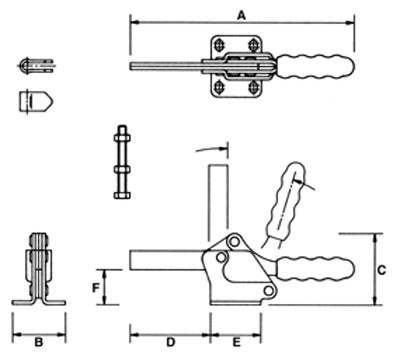

Part No Nominal force Weight (Kg) A B C D E F G H File
H250/2A 250daN 0.5 226 46 67 82 42 34 - - Zipped
H350/2A 350daN 0.9 279 59 91 111 59 45 - - Zipped
H450/2A 450daN 1.6 310 67 110 130 66 59 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
