Horizontal ToggleRange: Clamp
Group: Horizontal Toggle
Style: Straight Base Fixed

Click on Back to return to Product Group details.

<< Back

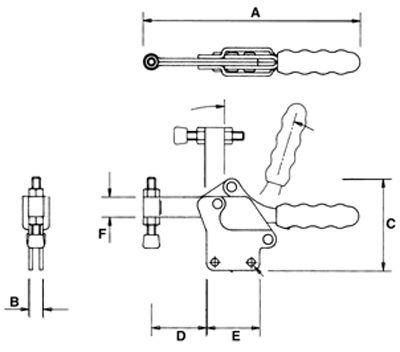

Part No Nominal force Weight (Kg) A B C D E F G H File
H75/1C 75daN 0.1 108 8 45 23 25 22 - - Zipped
H150/1C 150daN 0.25 154 10 65 38 38 28 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
